Solis S6-GC3P150K07 150kW Three Phase ON-Grid Solar Inverter

Description

Solis S6-GC3P150K07 150kW Three Phase ON-Grid Solar Inverter

Designed for utility-scale solar farms, commercial industrial complexes, textile garment factories, agro-industrial processing hubs, and large rooftop arrays across standard three-phase 380V/400V electrical grids, the Solis S6-GC3P150K07 represents the pinnacle of Ginlong Solis’s 6th generation (S6) commercial and industrial inverter platform. Certified and approved by the Sustainable and Renewable Energy Development Authority (SREDA), this inverter fully complies with Bangladesh’s official Net Metering guidelines, allowing industrial manufacturers to feed substantial surplus megawatts back into the national grid for major electricity tariff reductions.

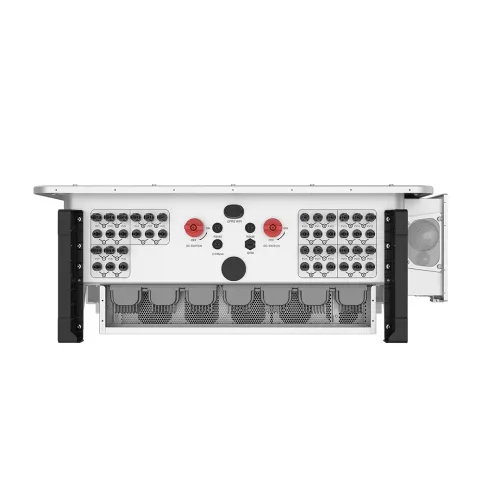

The solar DC input architecture features 7 Independent Maximum Power Point Trackers (MPPT) with 21 DC string inputs (3 strings per MPPT). Accommodating up to 225 kW of recommended DC array capacity, the system operates across an ultra-wide voltage window of 160V to 1000V (start-up at 180V). With a massive continuous DC current capacity of 54A per MPPT (75A short-circuit current), it easily supports high-power 600W+ to 700W+ bifacial modules without experiencing string current clipping. The 7-MPPT layout gives solar EPC engineers maximum string design freedom to counter multi-directional roof orientations, variable pitch angles, and localized shading obstructions across vast industrial roofs.

Operational security and asset safety are anchored by integrated AI-powered AFCI 2.0 DC Arc-Fault Protection, which continuously inspects DC current waveforms to detect and extinguish micro-arcing faults within milliseconds before electrical fire risks develop. For facilities with utility grid export limitations or awaiting net-metering synchronization, the inverter includes integrated Master-Slave Export Power Control (Zero-Export), capable of orchestrating up to 10 units in parallel via smart energy meters. It also features smart I-V curve diagnostics, nighttime SVG reactive power regulation, and optional nighttime PID recovery to prevent panel degradation over multi-decade lifespans.

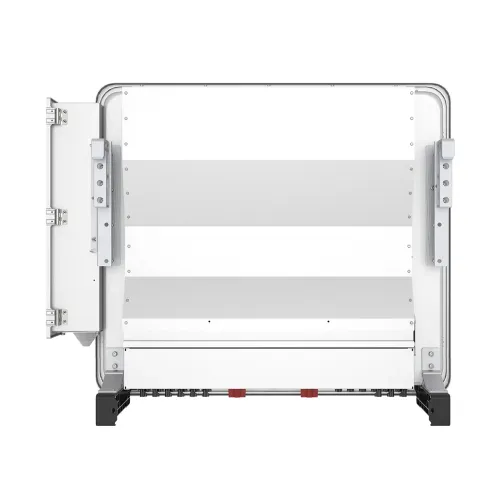

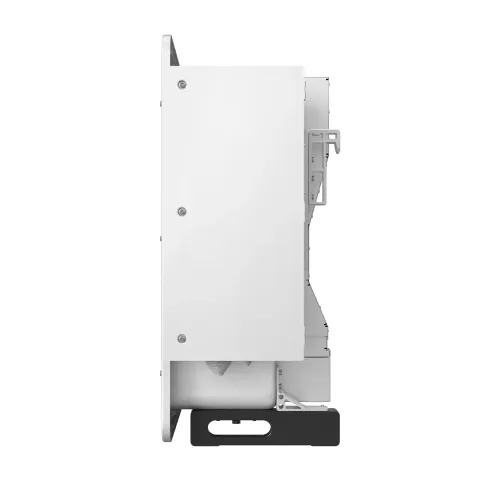

Constructed inside an all-weather IP66-certified aluminum enclosure weighing 105 kg, the inverter utilizes intelligent redundant fan cooling that automatically regulates temperature under grueling industrial conditions and operating temperatures ranging from –30 °C to +60 °C. Comprehensive remote fleet monitoring and string-level diagnostics are accessible via SolisCloud through dual independent RS485 interfaces, standard Bluetooth app commissioning, or optional plug-and-play Wi-Fi / GPRS / PLC data modules.

Product Pricing & Availability

The retail price for the Solis S6-GC3P150K07 150kW Three Phase ON-Grid Solar Inverter in Bangladesh typically ranges between 724,500৳ and 730,000৳ (with authorized retail pricing listed at 730,000৳ and promotional cash purchase pricing around 724,500৳ against regular showroom list prices reaching 819,000৳).

Turnkey megawatt industrial solar rooftop engineering, SREDA net-metering liaison, Tier-1 bifacial solar PV modules, heavy-duty mounting structures, MV/LV transformers, AC/DC distribution switchgear, and complete installation services are fulfilled directly through International Office Solution.
