Solis S6-EH3P30K-H 30kW Three Phase Hybrid Solar Inverter

Description

Solis S6-EH3P30K-H 30kW Three Phase Hybrid Solar Inverter

Designed for commercial corporate headquarters, spinning and textile mills, pharmaceutical plants, cold storage facilities, and private university campuses connected to standard 380V/400V three-phase utility grids, the Solis S6-EH3P30K-H represents Ginlong Solis’s flagship 30kW high-voltage energy storage inverter platform. It bridges commercial-scale solar harvest and high-voltage battery storage, dynamically coordinating power flows between rooftop solar arrays, energy storage battery racks, the public utility grid, and on-site auxiliary diesel or gas generators.

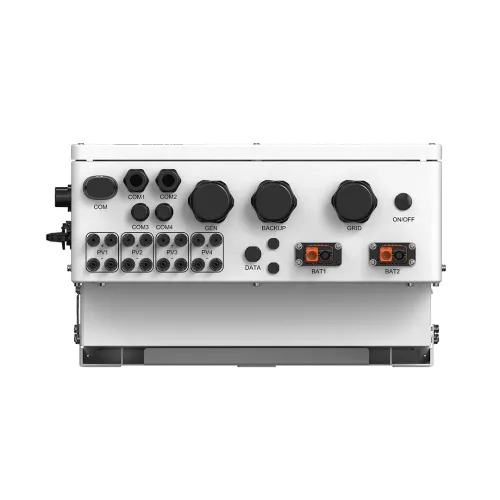

The solar DC input architecture features 3 Independent Maximum Power Point Trackers (MPPT) with 6 DC string inputs (2 strings per MPPT). Supporting up to 60.0 kW of usable PV array capacity (accommodating up to 200% DC/AC oversizing), the system operates across a wide MPPT voltage window of 150V to 850V (start-up at 160V) with a 1000V DC maximum voltage limit. With an upgraded continuous DC current capacity of 40A per MPPT (60A short-circuit current), it eliminates current clipping when paired with modern high-power 600W+ to 700W+ bifacial modules. The 3-MPPT design gives EPC engineers maximum flexibility to navigate complex industrial roof planes and multi-directional orientations without mismatch yield losses.

The energy storage subsystem utilizes a high-efficiency high-voltage battery architecture from 150V to 800V DC, reducing resistive I²R transmission losses and cabling thickness compared to traditional low-voltage setups. Equipped with 2 independent battery connection inputs supporting up to 70A each (140A total), it charges and discharges with up to 97.5% battery round-trip efficiency. The inverter natively supports 100% unbalanced three-phase loads on both grid and backup outputs, allowing commercial facilities to power single-phase heavy machinery and office floors across separate phases without triggering voltage imbalance faults.

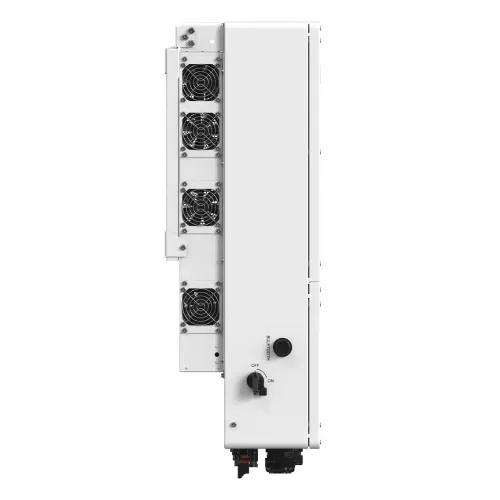

During utility grid failures, the internal automatic transfer switch engages in less than 10 milliseconds (<10ms), keeping mission-critical data servers, laboratory instrumentation, assembly lines, and industrial refrigeration operating smoothly. Built inside an all-weather IP66-certified aluminum enclosure weighing 73 kg, the inverter employs intelligent redundant fan cooling to ensure thermal stability under heavy ambient loads and operating temperatures from –25 °C to +60 °C. System management is handled locally via a 7-inch LCD screen with Bluetooth app commissioning and remotely through SolisCloud via CAN, RS485, Ethernet, and optional Wi-Fi / Cellular / LAN modules.

Product Pricing & Availability

The retail price for the Solis S6-EH3P30K-H 30kW Three Phase Hybrid Solar Inverter in Bangladesh typically ranges between 470,000৳ and 550,000৳ (with authorized cash purchase listings starting from 470,000৳ to 480,000৳ against regular showroom list prices reaching 545,750৳ to 593,990৳).

Turnkey commercial and industrial hybrid solar engineering, high-voltage LiFePO4 battery rack integration, Tier-1 bifacial solar PV modules, heavy-duty mounting structures, AC/DC distribution switchgear, and professional installation services are fulfilled directly through International Office Solution.
