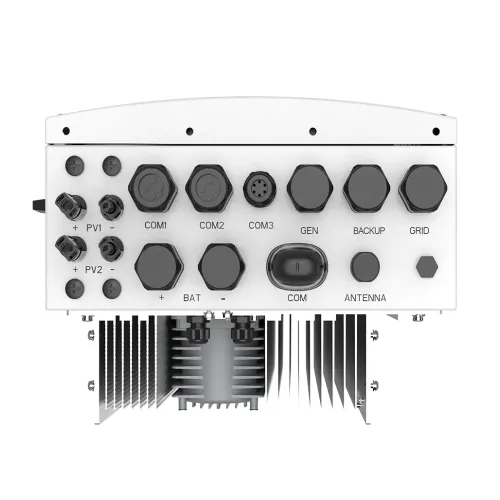

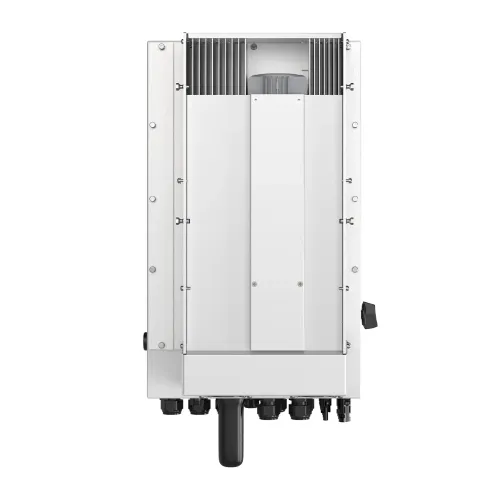

Solis S6-EH1P6K-L-PLUS 6kW Single Phase Hybrid Solar Inverter

Description

Solis S6-EH1P6K-L-PLUS 6kW Single Phase Hybrid Solar Inverter

Designed for modern urban residences, duplex villas, diagnostic centers, commercial corporate spaces, and institutions requiring high continuous power reliability, low utility electricity bills, and battery-backed energy security over standard single-phase 220V/230V electrical grids, the Solis S6-EH1P6K-L-PLUS represents the high-output 6kW model in Ginlong Solis’s flagship 6th generation (S6) hybrid energy storage family. It coordinates intelligent power flows among rooftop solar PV arrays, energy storage battery banks, the utility grid, and on-site auxiliary diesel/gas generators.

The solar DC input stage features Dual Independent Maximum Power Point Trackers (MPPT) supporting up to 9.6 kW of usable PV input (with up to 12.0 kW recommended PV array oversizing). Operating across an ultra-wide voltage window of 90V to 435V (starting up at a low 90V threshold) and accommodating a continuous DC input current rating of 16A per MPPT (20A short-circuit current), it integrates seamlessly with modern large-format 550W+ to 700W+ monocrystalline and bifacial solar modules without clipping harvest yields. Dual tracking channels allow system designers to split strings across separate roof faces, tilts, or partial shading zones without mismatch losses.

The energy storage subsystem operates on an accessible low-voltage 40V to 60V DC architecture (nominal 48V/51.2V) compatible with leading Lithium Iron Phosphate (LiFePO4) battery modules and deep-cycle Lead-Acid banks. Upgraded to deliver an aggressive 135A maximum charge and discharge current, it can rapidly replenish battery banks during peak sunlight or low-cost grid hours. When grid outages occur, the inverter switches to backup mode via its integrated automatic transfer switch in less than 4 milliseconds (<4ms)—faster than standard off-grid inverters—preventing computer servers, workstation setups, networking switches, and sensitive medical instruments from rebooting. A 10-second 200% surge envelope (12 kVA) absorbs high inductive motor startup spikes from heavy water pumps and multiple inverter air conditioners without tripping.

Constructed inside an all-weather IP66-certified weather-sealed enclosure, the inverter utilizes intelligent redundant fan-cooling to maintain continuous thermal dissipation under heavy ambient loads and operating temperatures from –40 °C to +60 °C. Comprehensive safety features include integrated ground fault monitoring, DC reverse-polarity protection, anti-islanding protection, and optional integrated AFCI 2.0 DC arc-fault circuit interruption. Remote fleet monitoring is accessible via SolisCloud over CAN, RS485, and plug-and-play Wi-Fi/GPRS modules, complemented by a local 7.0-inch LCD display and built-in Bluetooth for offline configuration.

The retail price for the Solis S6-EH1P6K-L-PLUS 6kW Single Phase Hybrid Solar Inverter in Bangladesh typically ranges between 125,000৳ and 135,000৳ (with current authorized promotional cash pricing around 135,000৳ against regular showroom list prices reaching 146,000৳ to 155,000৳).

Turnkey residential and commercial hybrid solar packages, 48V / 51.2V LiFePO4 battery storage banks (Pylontech, Dyness, LVTOPSUN), Tier-1 solar modules, AC/DC distribution boards, and professional installation services are fulfilled directly through International Office Solution.
