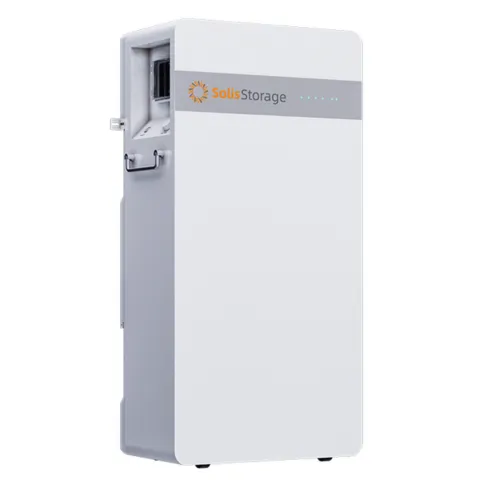

Solis IntelliHome-16kWh-OD 51.2V 314Ah Lithium Battery

Description

Solis IntelliHome-16kWh-OD 51.2V 314Ah Lithium Battery

Designed for modern residential estates, commercial office headquarters, medical diagnostics centers, and small industrial facilities across Bangladesh requiring heavy-duty, weather-resistant energy storage during grid outages, the Solis IntelliHome-16kWh-OD belongs to Ginlong Solis’s flagship SolisStorage residential and light-commercial energy storage line. It combines high energy density and extreme environmental resilience in a single unified chassis, eliminating the maintenance burdens, corrosive off-gassing, and frequent replacement cycles of traditional lead-acid or tubular battery banks.

The battery's internal architecture utilizes Grade-A 314Ah LiFePO4 prismatic cells (1P16S configuration) operating on a standard 51.2V nominal low-voltage DC bus (operating range 44.8V to 57.6V DC). Delivering 16.0 kWh of nominal energy with 100% usable capacity (100% DoD), it provides over 6,000 deep cycles, translating to more than 15 years of dependable daily cycling under standard operational profiles. Unlike standard indoor batteries, the IntelliHome-16kWh-OD is engineered with a smart heating function that maintains operational integrity during cold conditions down to –20 °C, alongside aerogel thermal insulation plates, built-in explosion release valves, integrated fire protection, and natural convection cooling.

The integrated intelligent Battery Management System (BMS) continuously monitors cell-level voltages, currents, and temperature profiles. It provides comprehensive protection against over-voltage, under-voltage, over-current, external short circuits, reverse polarity, and thermal anomalies, reinforced by internal DC overcurrent fuses and a physical DC circuit breaker. With native CAN and RS485 communication interfaces, the battery integrates with Solis single-phase and three-phase low-voltage hybrid inverters (including the Solis S6-EH1P and S6-EH3P low-voltage series) as well as multi-brand low-voltage inverters. For expanding power needs, up to 8 units can be connected in parallel, scaling total storage capacity up to 128 kWh.

Constructed inside an all-weather IP66-certified weather-sealed enclosure with C5M anti-corrosion protection ($470 \times 950 \times 240\text{ mm}$, 121.5 kg to 126 kg), the unit is built to withstand outdoor monsoon rain, humidity, and coastal saline atmosphere. Its natural convection cooling keeps acoustic operation virtually silent. The battery supports both floor-mounted (default) and wall-mounted arrangements and syncs data to SolisCloud for remote performance monitoring.

Product Pricing & Availability

The retail price for the Solis IntelliHome-16kWh-OD 51.2V 314Ah Lithium Battery in Bangladesh typically ranges between 280,000৳ and 350,000৳ (with current promotional cash pricing from 280,000৳ to 290,000৳ against regular showroom list prices reaching 350,000৳ to 380,000৳).

Turnkey solar hybrid installations, 48V/51.2V lithium battery bank synchronization, Tier-1 bifacial solar PV modules, Solis S6 hybrid inverters, DC disconnect switchgear, heavy-duty battery cables, and certified installation services are fulfilled directly through International Office Solution.
