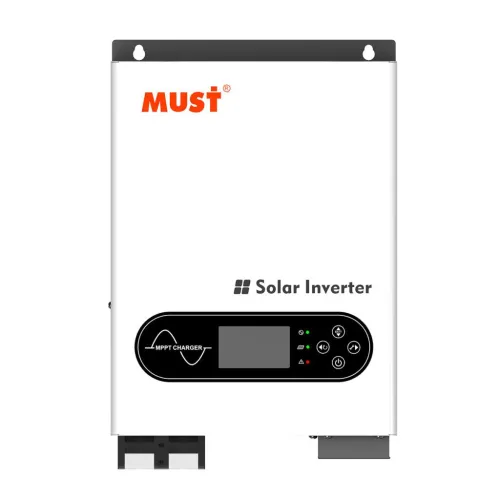

Must PV18-3024 ECO 3000VA Pure Sine Wave Solar Inverter

Description

Must PV18-3024 ECO 3000VA Pure Sine Wave Solar Inverter

Designed for modern residences, retail shops, branch workstations, and remote rural installations across Bangladesh requiring stable electricity free from power cuts and voltage sags, the Must PV18-3024 ECO belongs to Must's acclaimed PV1800 ECO high-frequency inverter family. It combines an advanced pure sine wave power inverter, a high-voltage MPPT solar charge controller, and a smart multi-stage battery charger within a lightweight, space-saving wall-mount enclosure.

The solar input stage features an integrated MPPT solar charge controller engineered to handle up to 4000 W of photovoltaic array input with wide voltage tracking capability. This wide voltage design allows longer single-string configurations, minimizing DC balance-of-system wiring and combiner box requirements while maximizing harvest yield during early mornings, late afternoons, and overcast weather. When battery reserves are disconnected or awaiting maintenance, the inverter supports battery-free direct solar mode, routing daylight generation directly into connected AC loads while utilizing utility AC strictly as supplementary backup.

For energy storage, the system operates on an accessible 24V DC nominal bus compatible with sealed Lead-Acid, Gel, AGM, and Lithium Iron Phosphate (LiFePO4) battery packs, featuring native CAN and RS485 communication protocols for active Battery Management System (BMS) synchronization. An integrated smart charging circuit delivers up to 80A of charging current, rapidly recharging depleted batteries from solar or utility power. To optimize power conservation during prolonged blackouts, the inverter features Dual AC outputs (Main Load + Second Load), automatically disconnecting secondary non-essential appliances to extend backup runtime for mission-critical lights, fans, routers, and computing hardware.

Constructed with intelligent thermal management fans and built-in hardware protection circuits, the inverter guards against DC reverse polarity, AC overcurrent, short circuits, over-temperature, overcharge, and deep battery discharge. A front-panel Smart LCD display with intuitive push-button controls provides real-time operational status (load percentage, PV input wattage, battery voltage, AC grid frequency) and allows rapid adjustments to charging priorities, AC voltage ranges (UPS vs. Appliance mode), and battery cut-off thresholds.

Product Pricing & Availability

The retail price for the Must PV18-3024 ECO 3000VA Pure Sine Wave Solar Inverter in Bangladesh typically ranges between 31,900৳ and 35,000৳ (with current promotional cash pricing from 31,900৳ to 32,500৳ against regular showroom retail prices reaching 35,000৳ to 45,000৳).

Turnkey residential solar hybrid packages, 24V LiFePO4 battery modules, Tier-1 mono PERC/TopCon solar panel arrays, mounting structures, AC/DC distribution boxes, and complete installation services are fulfilled directly through International Office Solution.
