| Category | Feature | Specification |
|---|---|---|
| General | Brand | Marsriva |
| General | Model | MR-SPF6.5K-LP1-TL20E |
| General | Product Type | Hybrid Solar Inverter |
| General | Inverter Design | High-frequency |
| General | Phase | Single phase |
| General | Rated Power | 6.5kVA / 6.5kW |
| General | Power Factor | 1 |
| General | Protection Rating | IP20 |
| AC Input | Nominal Voltage | 208 / 220 / 230 / 240V AC |
| AC Input | Voltage Range – UPS Mode | 170–264V AC |
| AC Input | Voltage Range – APP/GEN Mode | 90–280V AC |
| AC Input | Frequency Range | 50/60Hz ±10Hz, automatic sensing |
| AC Output | Nominal Output Voltage | 208 / 220 / 230 / 240V AC |
| AC Output | Voltage Tolerance | ±5% |
| AC Output | Nominal Output Power | 6kW |
| AC Output | Output Power with PV and Battery | 6.5kW |
| AC Output | Surge Power | 2 times rated power |
| AC Output | Output Frequency | 50/60Hz |
| AC Output | Battery-Mode Frequency Accuracy | ±0.1% |
| AC Output | Output Waveform | Pure sine wave |
| Performance | Maximum Efficiency | 94% in battery mode |
| Performance | UPS/APP Transfer Time | 10ms |
| Performance | Generator-Mode Transfer Time | 20ms |
| Battery | Nominal Battery Voltage | 48V DC |
| Battery | Battery Voltage Range | 40–61V DC |
| Battery | Compatible Battery Types | Lead-acid / Lithium / User-defined |
| Solar Input | Solar Charger Type | MPPT |
| Solar Input | Maximum PV Input Power | 9000W |
| Solar Input | Maximum PV Input Current | 27A |
| Solar Input | MPPT Voltage Range | 60–450V DC |
| Solar Input | Minimum PV Voltage Without Battery | 80V DC |
| Solar Input | Maximum PV Open-Circuit Voltage | 500V DC |
| Charging | Maximum Solar Charging Current | 120A |
| Charging | Maximum AC Charging Current | 120A |
| Charging | Maximum Hybrid Charging Current | 120A |
| System | Solar and Utility Power | Can supply loads simultaneously |
| System | Battery-Free Operation | Supported under suitable solar conditions |
| System | AC Output | Dual AC output |
| System | Grid Feed-In | Supported, subject to installation and regulations |
| Connectivity | BMS Communication | RS485 / CAN |
| Connectivity | Wi-Fi Monitoring | Supported |
| Environment | Operating Temperature | -10°C to 50°C |
| Environment | Storage Temperature | -15°C to 60°C |
| Environment | Relative Humidity | 5%–95%, non-condensing |
| Physical | Dimensions (W × H × D) | 336 × 410 × 110mm |
| Physical | Net Weight | 10kg |
| Warranty | Warranty Period | 2 years |

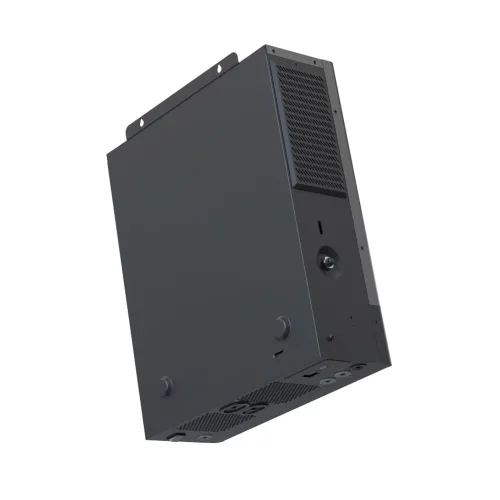

Marsriva MR-SPF6.5K-LP1-TL20E 6.5kW Hybrid Solar Inverter
Price:
48,500৳
57,200৳
Status: In Stock
Product
Code: #5316
Category:
Power
Brand:
MARSRIVA
The Marsriva MR-SPF6.5K-LP1-TL20E 6.5kW Hybrid Solar Inverter provides efficient solar energy management for homes, offices, shops, and commercial installations. With 6500VA rated capacity, a 48V battery system, an integrated MPPT solar charger, and support for up to 9000W solar PV input, it offers flexible power management for solar, battery, and utility power.
48,500৳
Cash / Online Price
Online / Cash Payment
4,767৳/month
Regular Price: 57,200৳
0% EMI up to 12 Months
Specification
Description
Marsriva MR-SPF6.5K-LP1-TL20E 6.5kW Hybrid Solar Inverter
Marsriva 6.5kW Hybrid Solar Inverter Price in Bangladesh
The Marsriva MR-SPF6.5K-LP1-TL20E is designed for solar power installations that require higher output capacity and flexible energy management. It combines solar charging, battery support, and utility power integration in a compact, high-frequency inverter.
With a nominal output of 6kW under standard operating conditions and up to 6.5kW when using PV and battery power together, it can support a range of compatible household and commercial electrical loads.
6.5kW Output with Pure Sine Wave Technology
This inverter delivers pure sine wave AC output and supports selectable nominal voltages of 208V, 220V, 230V, and 240V AC. Its power factor of 1 supports efficient use of its rated capacity.
The inverter is suitable for compatible lighting, computers, networking equipment, refrigerators, fans, and other appliances within the applicable continuous and surge power limits.
High-Capacity Solar Input with MPPT Technology
The integrated Maximum Power Point Tracking (MPPT) solar charger supports up to 9000W of solar PV input. The MPPT operating voltage range is 60–450V DC, with a maximum PV open-circuit voltage of 500V DC and maximum PV input current of 27A.
For battery-free operation, the minimum PV voltage is specified as 80V DC. Solar panels must be arranged according to the inverter's voltage and current limits.
48V Battery Compatibility
The MR-SPF6.5K-LP1-TL20E supports a nominal 48V DC battery system with an operating range of 40–61V DC. It supports compatible lead-acid, lithium, and user-defined battery configurations.
Maximum solar charging, AC charging, and hybrid charging current are each specified at up to 120A. Actual charging performance depends on the selected settings, available input power, and battery requirements.
Hybrid Solar and Utility Power Management
Solar and utility grid power can supply loads simultaneously. The inverter also supports battery-free operation under suitable solar conditions and a grid feed-in function, subject to appropriate installation and local regulations.
The transfer time is approximately 10ms in UPS/APP mode and 20ms in generator mode, helping maintain power continuity during supported source transitions.
Smart Monitoring and BMS Communication
The inverter supports Wi-Fi monitoring and BMS communication through RS485 and CAN interfaces. These features support remote monitoring and communication with compatible battery management systems.
Dual AC Output
Dual AC output provides additional flexibility for separating supported loads according to the installation configuration. Load allocation and output limits must follow the manufacturer's specifications.
Applications
- Residential solar power systems
- Offices and commercial establishments
- Shops and small businesses
- Compatible computers and networking equipment
- Refrigerators, fans, lighting, and other suitable appliances
- Solar installations with compatible 48V battery banks
- Solar systems integrating utility power
Installation note: Actual backup time depends on battery capacity, connected load, solar generation, and battery condition. Grid feed-in requires a suitable installation and compliance with applicable utility requirements. Professional installation is recommended.
Key Features
- Brand: Marsriva
- Model: MR-SPF6.5K-LP1-TL20E
- Product Type: Hybrid Solar Inverter
- Rated Power: 6.5kW / 6.5kVA
- Nominal Output Power: 6kW; up to 6.5kW with PV and battery power
- Battery Voltage: 48V DC
- Maximum PV Input Power: 9000W
- MPPT Voltage Range: 60–450V DC
- Maximum PV Open-Circuit Voltage: 500V DC
- Maximum PV Input Current: 27A
- Maximum Charging Current: 120A
- Output Waveform: Pure sine wave
- Maximum Efficiency: 94% in battery mode
- Transfer Time: 10ms in UPS/APP mode; 20ms in GEN mode
- Battery Compatibility: Lead-acid, lithium, and user-defined
- Connectivity: Wi-Fi, RS485, CAN
- Additional Features: Dual AC output and battery-free operation under suitable conditions
- Protection Rating: IP20
- Warranty: 2 years
What is the price of Marsriva MR-SPF6.5K-LP1-TL20E 6.5kW Hybrid Solar Inverter in Bangladesh?
The latest price of Marsriva MR-SPF6.5K-LP1-TL20E 6.5kW Hybrid Solar Inverter in Bangladesh is 48,500৳. You can buy the Marsriva MR-SPF6.5K-LP1-TL20E 6.5kW Hybrid Solar Inverter at best price from our website or visit any of our showrooms.
